BISCAYNE

SYSTEM

The Perfect Solution for Glass Railing Support.

THE SYSTEM

The system offers a pleasing aesthetic as no visible hardware is present, with a design focused on all-glass construction and unobstructed views.  This system adds 6″ of depth to the balconies, positioned 3″ away from the edge, and an additional 3″ is required for the top mount system to maintain a minimum distance from the edge. This expansion increases the square footage of the units.

The glass covers the fascia of the decks, creating a seamless and unified appearance for the entire deck.The side-mounted installation of the system eliminates any waterproofing issues. and does not need additional finishing, resulting in significant budget savings.

The installation process does not hinder the progress of other trades following our work, ensuring a smooth and efficient workflow.  The system allows for easy replacement of any component, providing flexibility and convenience for maintenance purposes.  The system is compatible with various substrate materials such as concrete slabs, wooden diaphragms, steel, and masonry.

There is an option to incorporate subtle LED lighting at the bottom of the decks, allowing for customizable alternating hues if desired.

No welding is necessary, eliminating the need for a welding deputy inspector and fire watcher.

In conclusion, the cost savings and added value of this system surpass those of similar options available in the market.



VIDEOS

Biscayne System Curved Installation Process

Biscayne System Flat Installation Process

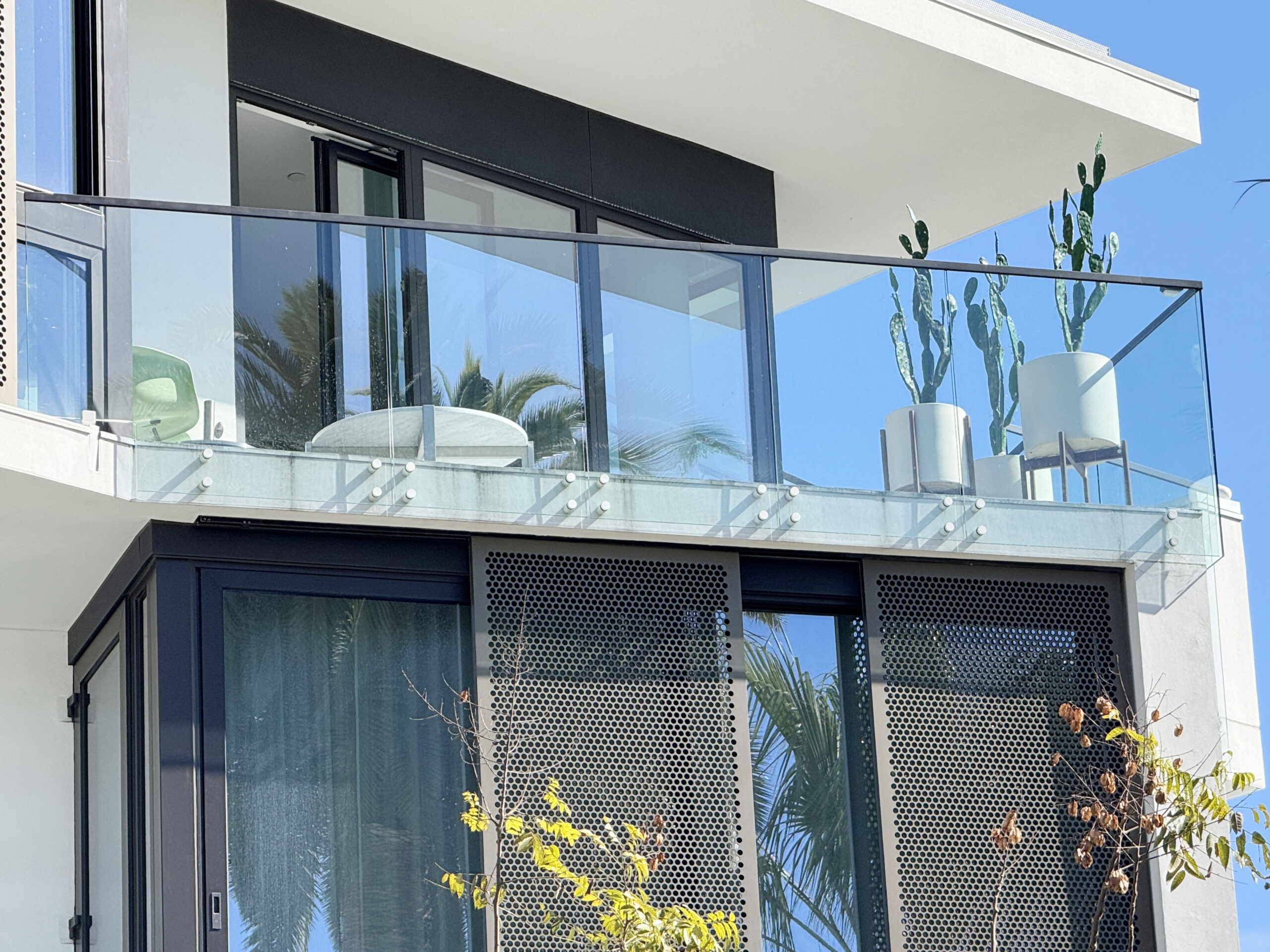

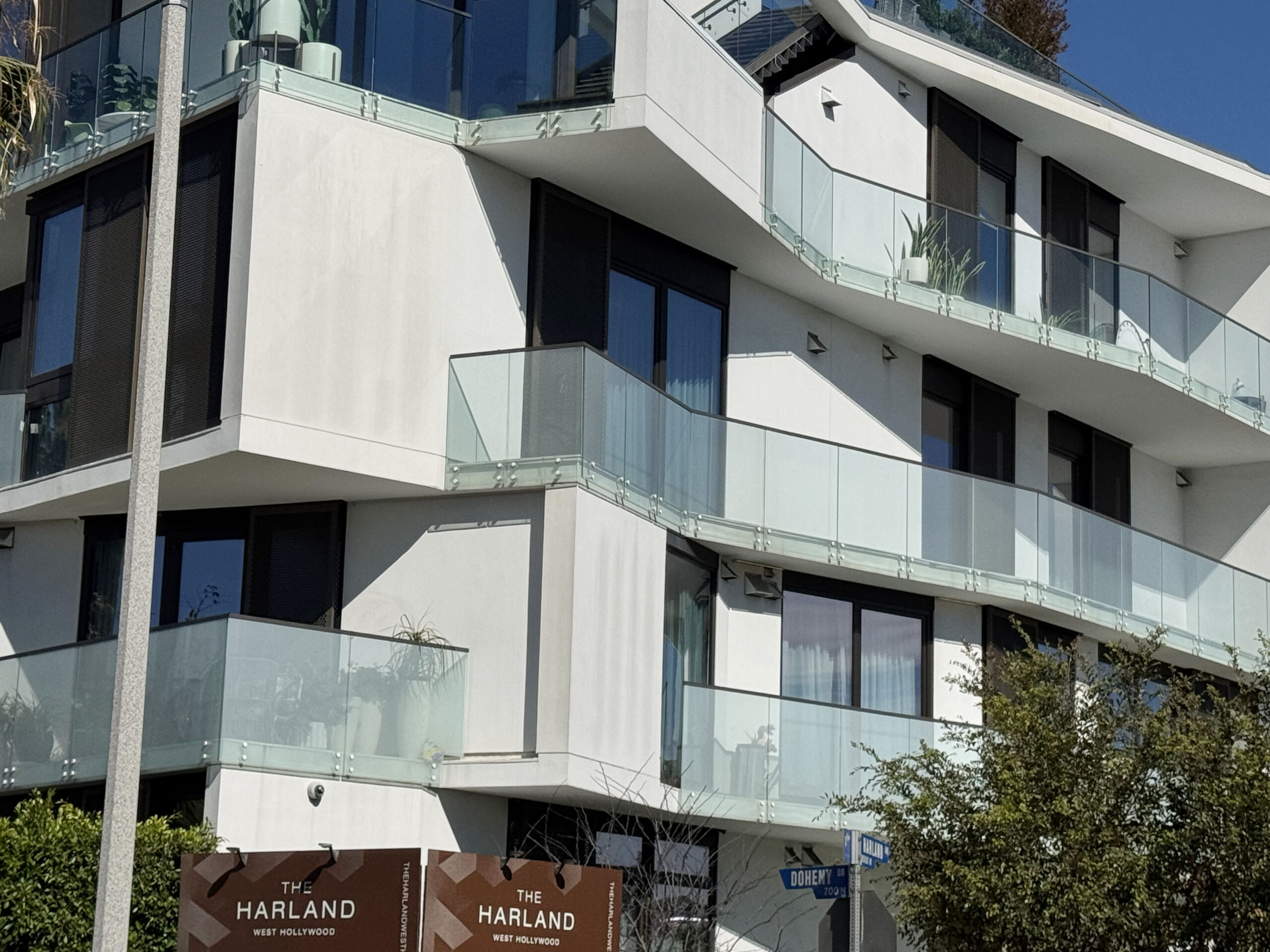

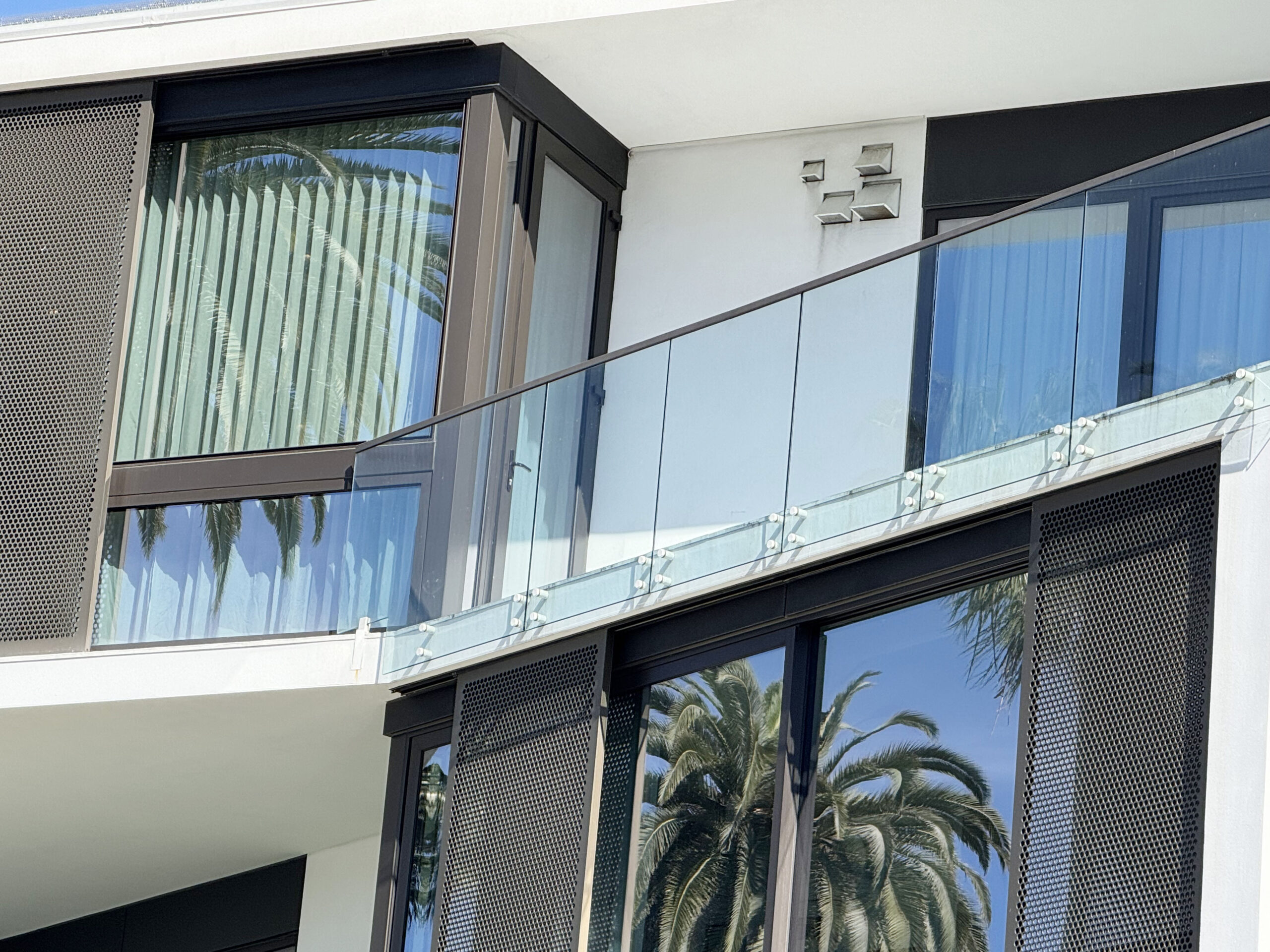

GALLERY

RAMI BISCAYNE STANDOFF SYSTEM

  • Offered for Exterior and Interior Applications.
  • Brushed, Mirror and Copper Architectural Finishes Available.
  • Compact Design for Minimal Obstruction.
  • Designed for Guard Rail, Stairway or Ramp Areas.
  • Meets or Exceeds A.D.A. Requirements.
  • Custom Engineering and Fabrication Available.
  • Spacing: Maximum horizontal spacing between fittings depends
    on its use and mounting conditions. The minimum height spacing
    is 6″ (102 mm) center-to-center.
  • Available in Stainless Steel 304 and 316.
  • Easy Installtion on Concrete, Steel and Wood Substrates.
  • Meet or Exceed Guardrail and High Wind Load Code Requirements.
  • INTERTEK, LARR and NOA Certification Up to Date.

GLASS SPECIFICATIONS:

  • For Use With  9/16″ and 11/16″ (13.52 and 21.52 mm) Laminated
    Tempered Glass Using DuPont® SentryGlas®
    Interlayers.
  • One 3/4″ (19 mm) Diameter Hole Per Fitting.
  • Glass Panels are Suitable for Flat or Curved Edge Applications.
